Cortizo Core Vision Evolution

AluminiumDoorsinPoole&Bournemouth

Done properly, by the person who surveys them. A minimal-frame aluminium door system with the numbers to back it up.

Get a Free Quote

5.0★from 25 Google reviews
CertifiedAssure Insurance-backed
10+ YearsExperience
GuaranteedFor 10 Years

The slim-sightline look, and our own aluminium work

Cortizo Core Vision, shown, not just named, plus a real aluminium install of ours.

Slim anthracite aluminium sightlines on a heritage elevation, fitted by Wilshaw Glazing — A minimal-frame aluminium sliding door dividing a bright interior. Cortizo's own image, filed by them as a photomontage rather than a straightforward photograph.

An anthracite aluminium window and door elevation, fitted by Wilshaw Glazing — A wide aluminium sliding door opening onto a coastal-style exterior. A press image from Cortizo whose status as a photograph or a render isn't confirmed.

A sage-green aluminium bi-fold door fully open on a timber-clad garden room, a real Wilshaw installation — One of ours: a sage-green aluminium bi-fold on a garden room. A different configuration to the Core Vision Evolution sliding system this page covers, but genuine proof of our aluminium fitting work.

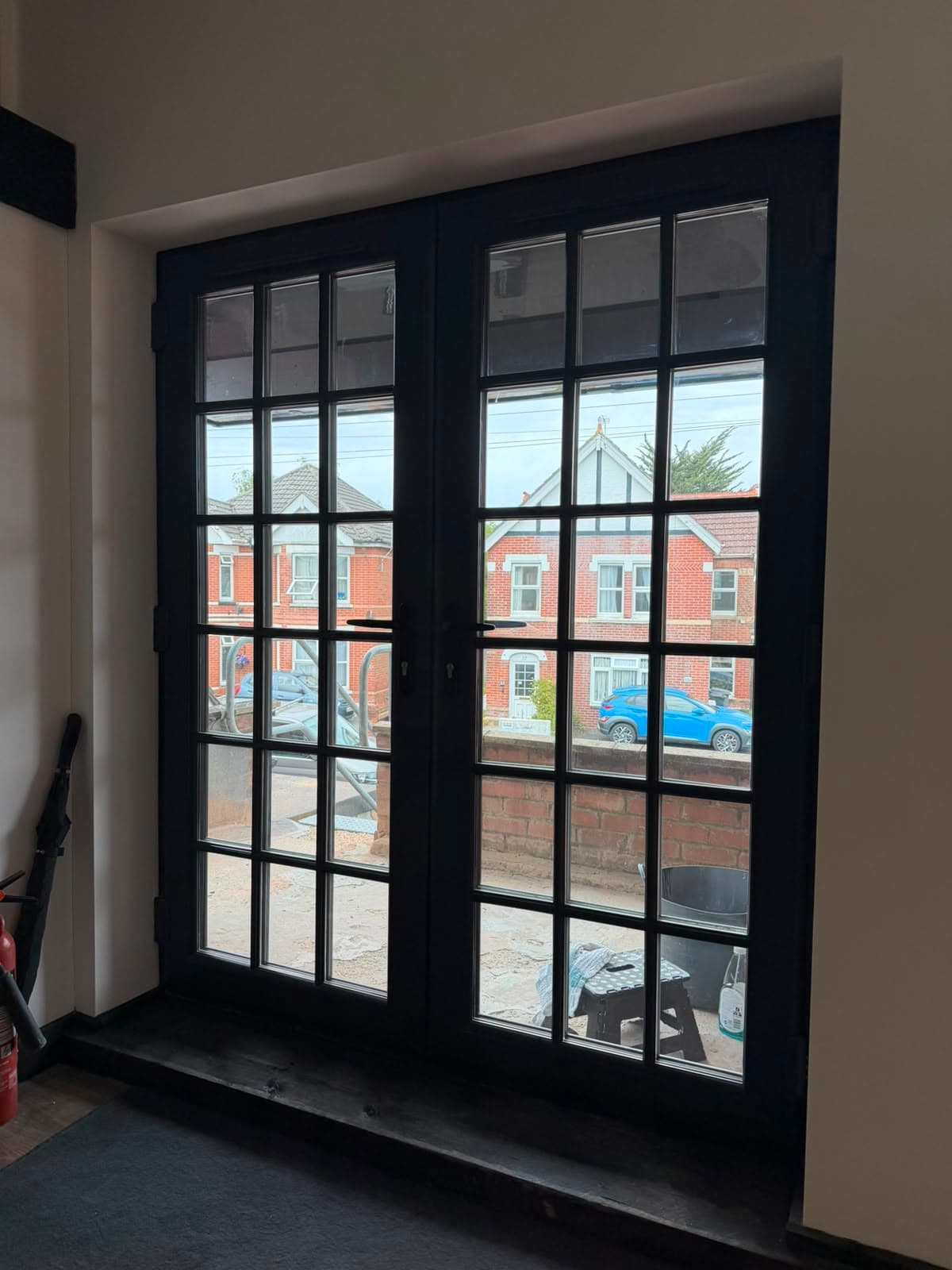

The first two images are Cortizo's own manufacturer-published visualisations of the Core Vision system, covering both this gallery and the image used in the hero above, not photographs of our own installations. The third is different: a genuine Wilshaw aluminium bi-fold installation, a different configuration to the sliding system this page describes. We also have a photo of a Core Vision door we've fitted ourselves, an anthracite patio door onto a new timber deck, shared with our Patio Doors page, but it isn't ready to publish yet.

The detail that carries it

Why this reads as slim, and most aluminium doesn't

The 25mm central-node sightline is the number that does the work here. Origin's own OS29+, the UK's best-known premium aluminium system, publishes a 29mm sightline as its flagship figure. Core Vision Evolution is slimmer than that benchmark, and as far as we've found nobody fitting locally publishes a sightline figure to compare against at all.

Frame depth by track count: 160mm single, 248mm triple, 336mm four-track
62mm lateral sightline
Manufactured in 6063 T-5 extrusion aluminium alloy

Technical cross-section of the Cortizo Core Vision central-node joint, showing the 25mm sightline

What's actually being tested, and what the numbers mean

Figures, not adjectives.

U-value

As low as 0.88 W/m²K, against Part L's 1.4 W/m²K ceiling for a door with more than 60% glazed area. The figure depends on typology, dimensions and glass, so it's best-case, not a guarantee.

Weather-tested

Tested to Class 4 air, E900 water and C5 wind resistance, the EU-harmonised standards Cortizo tests to. We don't make a security-certification claim for this system.

Acoustic

Up to 43dB, the maximum achievable figure, not a fixed spec.

Glazing

28mm to 44mm glazing capacity, triple-glazing capable, with 45mm of polyamide in the frame and 38mm in the sash.

Materials

Manufactured in 6063 T-5 extrusion aluminium alloy.

Size

Sashes up to 3,500 × 3,500mm and 500kg are shown in Cortizo's own documentation, described as "consult maximum dimensions and weight according to typologies." We treat that as an engineering ceiling, not a standing capability, and confirm your exact opening at survey.

Real configuration, not one photo

Will it suit your opening?

Single, double, triple or four-track sliding, in combinations of up to 8 sashes. Corner and bay junctions can run at 90° without a mullion, and a pocket "Galandage" option hides the sash fully in the wall, though that needs a cavity roughly twice the door's width plus a framing allowance, a bigger structural decision than a standard slider, so it's worth raising early if you're interested.

Single, double, triple or four-track sliding
Up to 8 sashes
90° corner and bay junctions without a mullion
Pocket "Galandage" hidden-sash option, a structural decision we confirm at survey

Technical cross-section of a Cortizo Core Vision 90° corner junction, showing the frameless mitred joint

The finish, your way

Indicative colour, confirmed for real at the survey.

Indicative colour
RAL colour, smooth
Qualicoat >60 micron
Indicative colour
RAL colour, mottled texture
Qualicoat >60 micron
Indicative colour
RAL colour, rough texture
Qualicoat >60 micron
Indicative colour
Wood-effect
Qualideco standard
Indicative colour
Anodised, Class 15
Ewwa Euras, standard
Indicative colour
Anodised, Class 20
Ewwa Euras, optional
Indicative colour
Anodised, Class 25
Ewwa Euras, optional
Indicative colour
Dual colour
Different colour inside to outside

Colours shown here are indicative. A different colour inside to outside is available, we'll confirm any lead-time impact when we quote. No fixed lead-time figure is published for Core Vision specifically, so we won't invent one.

How it works, start to finish

No salesman, just Josh.

The survey

Josh surveys every job himself, including the opening itself.

The quote

You get a written quote for exactly what's being fitted, not a generic figure.

The fit

We fit the door and make good around it.

Get a Free Quote

The bits people worry about

Will it actually fit my opening? I've got an awkward space.
The survey covers your exact opening, and the real track, corner and pocket configurations above show there's more than one way to fit it.
Who's actually coming to survey and fit it?
Josh surveys and manages every job himself. It's never handed off partway through.
What if I don't like the finish once it's fitted?
We confirm the finish against the physical range at survey, not off a screen swatch.

Why people pick us for this

Josh surveys and manages every job himself, every job is Assure certified, and the workmanship carries a 10-year guarantee that's insurance-backed through Assure. Materials are covered separately, by each manufacturer's own product guarantee, not this one. We also carry a curated range across PVC, aluminium and timber-look, including Cortizo, Smart Alitherm Heritage, RoseView, Rehau Total 70 and Endurance, where most local rivals carry uPVC only.

Owner-surveyed, one point of contact
A curated multi-material range, not uPVC-only
Assure insurance-backed workmanship guarantee

Get a Free Quote

Technical cross-section of the Cortizo Core Vision central-node joint

Aluminium or uPVC: the honest difference

Real trade-offs, not a sales pitch.

	Aluminium (Core Vision)	Standard uPVC
Sightline / how slim the frame reads	25mm central-node sightline	Typically a wider visible frame
Upfront cost	Typically the higher upfront cost of the two	Typically the lower upfront cost of the two
Thermal performance	Needs a proper thermal break to perform. Done right, it competes with uPVC on warmth	A naturally poorer conductor, performs well without extra engineering
Typical lifespan	Often quoted at 35-40+ years, though this depends heavily on the specific system and finish quality	Often quoted at 20-30 years, similarly dependent on spec and finish

Swipe to see every column

Is aluminium actually worth it?

The honest disadvantages: aluminium typically costs more upfront than uPVC, and it only performs thermally if it's properly specified with a thermal break. That's not glossed over here.

Why it still tends to be worth it over the ownership period: a slimmer sightline than an equivalent uPVC door, and a lifespan that's often quoted well beyond uPVC's, though both figures depend heavily on the system and finish. If you want the fuller type-by-type comparison, our uPVC Doors page covers that ground.

What customers say

The live rating from our Google Business Profile.

5.025 reviews on Google

Natasha Evans

Josh and his team worked incredibly hard replacing all of the windows and doors in our house, including fitting a beautiful bifold door in place of our old French doors. We could not be happier with the results. The quality of the workmanship was excellent, and Josh was fantastic with communication throughout the whole process. He was reliable, professional, and kept us updated every step of the way. We would highly recommend him to anyone looking for high-quality work and great service.

Tevez Ishmael

Highly recommend Wilshaw Glazing Installed bifold with Blinds inside the glass for our new extension on our house really happy with the end result, couldn't recommend Josh enough

Move Your Feet MYF

Canford Cliffs

so happy with bifold installed, in canford cliffs recommend them has changed our kitchen

How much do aluminium doors cost, fitted?

We don't publish a fixed price, because the size and configuration of your opening and your chosen finish both move the number. There's no published market range for aluminium doors specifically that we're confident enough in to quote here, so the honest next step is a survey and a written quote.

What are the disadvantages of aluminium doors?

The main one is cost: aluminium typically costs more upfront than uPVC, and it needs a proper thermal break to perform thermally. See "Aluminium or uPVC" above for the fuller picture.

Are aluminium doors worth the extra cost?

For most people choosing a wide or highly visible opening, yes: slimmer sightlines and a longer typical lifespan tend to justify it. See "Aluminium or uPVC" above.

Will it actually be secure?

We don't make a security-certification claim for this system, because Cortizo has not published a PAS 24 rating for it. What we can tell you is the tested weather performance: Class 4 air, E900 water and C5 wind resistance. If a security rating is what matters most to you, say so at the survey and we will steer you to a door that carries one.

What happens next if I want a quote? Will someone measure up?

Yes. Josh comes out, surveys the opening and follows up with a written quote. It's always a proper measure-up, never a phone estimate.

Every job is quoted after a survey

How we price an aluminium door

No price list, every job surveyed

We don't publish a price list, and there's no published market range for aluminium doors specifically that we're confident enough in to quote here. Once Josh has surveyed your opening, you'll get a written quote for exactly what's being fitted.
